CBH

Control Box

Single-phase submersible motor start and operation electric panel for 4" single-phase water-cooled submersible motors.

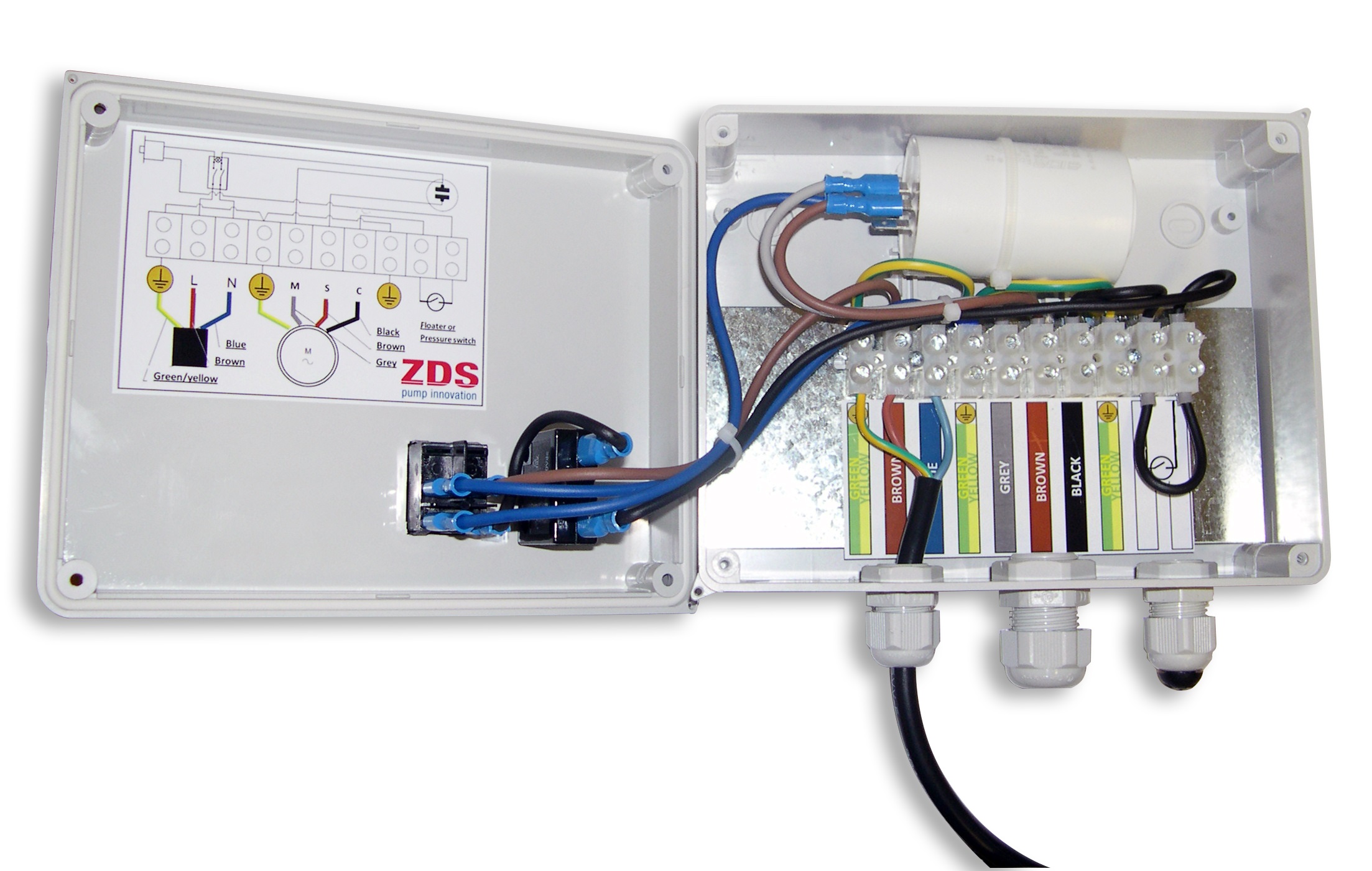

Electric panel made of:

  • Oversized casing in thermoplastic material
  • ON/OFF illuminated switch with anti-humidity protection
  • thermal switch for motor protection
  • start and run capacitor
  • terminal box
  • cable glands
  • power supply cable
  • mounting accessories

Send us a request


  • kW: 0,37 - 2,2
  • Voltage range: 220-230V / 50Hz
  • Voltage tolerance 50Hz from nominal:: +6% / -10% Un
  • Degree of protection: IP 55
  • Rated ambient temperature: from -10° C to 40° C
  • Power inlet: 1x230 V ±10% 50Hz
  • Start and run capacitor: included
  • Degree of protection: IP 55
  • 1,5 m cable with European (or UK) plug: included
  • Standard: IEC 60439-1:2010
  • Inlet: for connection to pressure switches or floats
  • Terminal box: over-sized
  • Amperometric protection cut-off: manually resettable
  • Cable glands: of 3 different sizes

Automatic protections

Current overload protection

Current overload protection

The CBH control box protects the water-cooled PSC motor against overload. In case the pump is partially or totally blocked, the amperometric protection in the control box stops the motor to protect it.

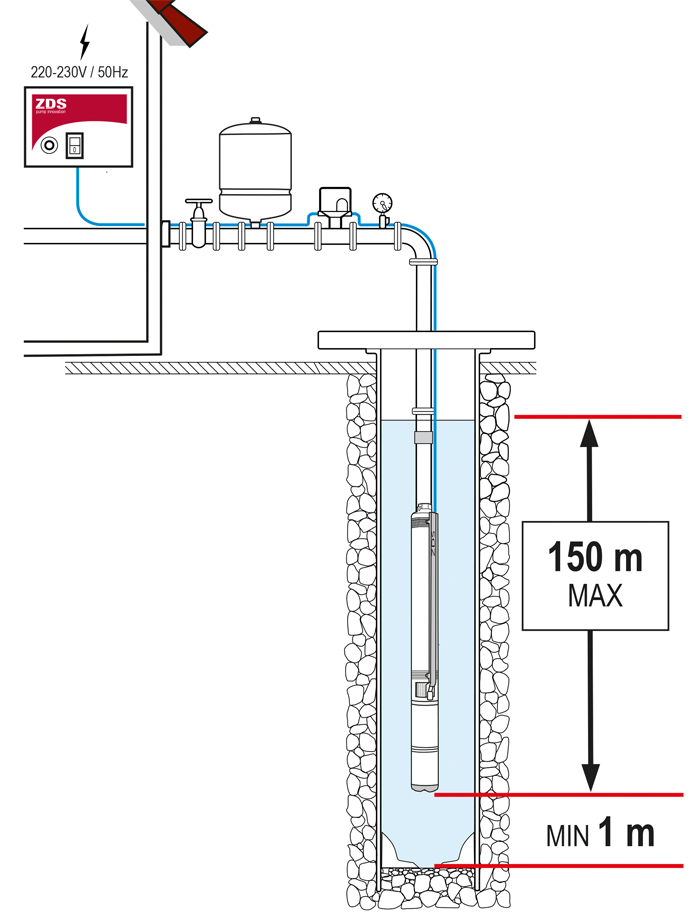

Information on a proper installation

In order to reset the amperometric protection sensor, it is necessary to press the appropriate button on the CBH.
